Header Container
The root of a built header: drop a Logo, Navigation, and other header parts inside. It is shown in the block inserter as Canvas Header Container and registered as canvas-core/header-container.

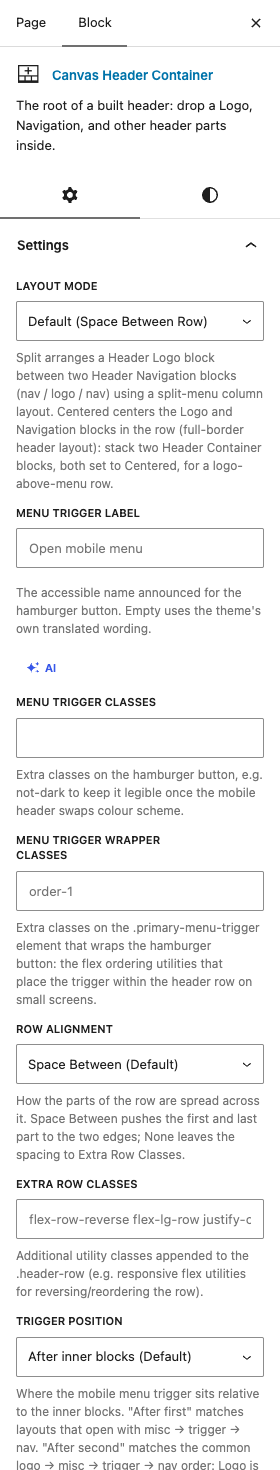

Select the block on a page and its own settings open in the sidebar, in the panels below:
Settings
Each setting is named exactly as the block editor names it, followed by what it does and what it starts as. Where a setting carries a Shown when line, it stays hidden until that condition is met, which is the usual reason a setting looks missing from the sidebar:
Settings
Layout ModeDefaultEmpty
2-Row moves the Header Navigation blocks, with the mobile menu button, onto a row of their own beneath the logo and icons. Split arranges a Header Logo block between two Header Navigation blocks (nav / logo / nav) using a split-menu column layout. Centered centers the Logo and Navigation blocks in the row (full-border header layout): stack two Header Container blocks, both set to Centered, for a logo-above-menu row. Theme Options follows Header > Layout > Header Structure.
ChoicesTheme Options (empty)Default (Space Between Row)2-Row (Menu on a Row Below)Split (Centered LogoMenu Split Left/Right)Centered (Logo + Menu Centered)
Menu Button AnimationDefaultEmpty
How the mobile menu button turns into a close icon when tapped. Theme Options follows Header > Mobile > Hamburger Animation.
ChoicesTheme Options (empty)SqueezeSpinShown when Mobile Menu Trigger is on
Menu Trigger LabelDefaultEmpty
The accessible name announced for the hamburger button. Empty uses the theme's own translated wording.
Menu Trigger ClassesDefaultEmpty
Extra classes on the hamburger button, e.g. not-dark to keep it legible once the mobile header swaps colour scheme.
Menu Trigger Wrapper ClassesDefaultEmpty
Extra classes on the .primary-menu-trigger element that wraps the hamburger button: the flex ordering utilities that place the trigger within the header row on small screens.
Trigger PositionDefaultAfter inner blocks (Default)
Where the mobile menu trigger sits relative to the inner blocks. "After first" matches layouts that open with misc → trigger → nav. "After second" matches the common logo → misc → trigger → nav order: Logo is the 1st inner block, a Header Misc group (Search/Cart) is the 2nd, the trigger drops in right after it, before Navigation. "After third" matches layouts with three leading inner blocks before the trigger (e.g. logo → misc group → social/search group → trigger → nav).
ChoicesAfter inner blocks (Default)Before inner blocksAfter first inner blockAfter second inner blockAfter third inner block
Mobile Menu TriggerDefaultOn
Render the hamburger button that opens the mobile menu.
Search FormDefaultOff
Append the .top-search-form the header search dropdown expands into.
Search Input ClassesDefaultEmpty
Class names added to the search input itself, for a design that draws its own field.
Shown when Search Form is on
Extended Search FormDefaultOff
Add a category dropdown next to the search input (row layout).
Shown when Search Form is on
Search AutocompleteDefaultOff
Suggest matching posts while typing (public search-suggest endpoint + bundled typeahead engine).
Shown when Search Form is on
Search PlaceholderDefaultEmpty
Prompt shown inside the search field. Empty uses the default.
Shown when Search Form is on
Trigger TargetDefaultEmpty
Limits this hamburger to one navigation instead of opening every menu in the header. Needed when a header carries more than one button and menu pair, such as a separate desktop row and mobile row. Enter the selector that matches the menu it should open, or leave empty to open them all.
Shown when Mobile Menu Trigger is on
Layout
Row AlignmentDefaultSpace Between (Default)
How the parts of the row are spread across it. Space Between pushes the first and last part to the two edges; None leaves the spacing to Extra Row Classes.
ChoicesSpace Between (Default)StartCenterEndNone (no utility)Shown when Layout Mode is "Theme Options" or "Default (Space Between Row)" or "2-Row (Menu on a Row Below)"
DirectionDefaultEmpty
How the parts of the row line up at every width: side by side, stacked, or reversed.
ChoicesDefault (empty)Side By SideStackedSide By SideReversedStackedReversed
Direction Above The Menu BreakpointDefaultEmpty
Direction from the width at which the full menu shows. A row stacked on phones and side by side on wide screens sets Direction to Stacked and this to Side By Side.
ChoicesDefault (empty)Side By SideStackedSide By SideReversedStackedReversed
Row Alignment Above The Menu BreakpointDefaultEmpty
How the parts of the row are spread from the width at which the full menu shows.
ChoicesDefault (empty)StartCenterEndSpace BetweenSpace Around
Vertical AlignmentDefaultEmpty
How parts of different heights line up across the row, at every width.
ChoicesDefault (empty)TopMiddleBottomStretchText Baseline
Vertical Alignment Above The Menu BreakpointDefaultEmpty
Vertical alignment from the width at which the full menu shows.
ChoicesDefault (empty)TopMiddleBottomStretchText Baseline
Extra Row ClassesDefaultEmpty
Additional utility classes appended to the .header-row (e.g. responsive flex utilities for reversing/reordering the row).
Show OnDefaultEmpty
Restricts this entire row to a single device tier: use to stack a separate desktop row and mobile row inside the same header. Defaults to "Both" (no class added, byte-identical to before this field existed).
ChoicesBoth (Desktop & Mobile) (empty)Desktop Only (d-none d-lg-flex)Mobile Only (d-lg-none)
Row ContainerDefaultEmpty
Wraps the row in a container, so it lines up with the page content.
ChoicesNone (empty)Boxed (.container)Full Width (.container-fluid)
Row Container ClassesDefaultEmpty
Extra classes on the row container (space-separated).
Shown when Row Container is "Boxed (.container)" or "Full Width (.container-fluid)"
Row Container Corner RadiusDefaultEmpty
Rounds the corners of the row container, for a floating header bar. Enter a CSS length such as 1.75rem or 20px.
Shown when Row Container is "Boxed (.container)" or "Full Width (.container-fluid)"
Related
Every Canvas block also carries the Animation, Scroll Effects and Advanced panels, which are described in Controls every Canvas block has.
Other blocks in Header: App Menu, Color Scheme Toggle, Header Button, Header Cart, Header Icon Link, Header Info.
