Portfolio Archive Grid

Portfolio grid for the main query (archive + category). Uses the portfolio-entry-grid partial + #portfolio overlay grid. It is shown in the block inserter as Portfolio Archive Grid and registered as canvas-core/portfolio-archive.

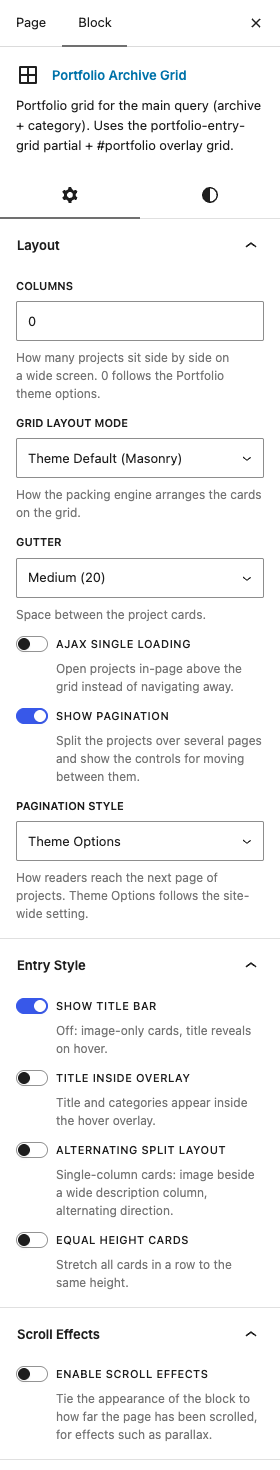

Select the block on a page and its own settings open in the sidebar, in the panels below:

Settings

Each setting is named exactly as the block editor names it, followed by what it does and what it starts as. Where a setting carries a Shown when line, it stays hidden until that condition is met, which is the usual reason a setting looks missing from the sidebar:

Layout

• ColumnsDefault0

  How many projects sit side by side on a wide screen. 0 follows the Portfolio theme options.

• Grid Layout ModeDefaultEmpty

  How the packing engine arranges the cards on the grid.

  ChoicesTheme Default (Masonry) (empty)Fit RowsMasonry

• GutterDefaultMedium (20)

  Space between the project cards.

  ChoicesNone (empty)Small (10)Medium (20)Wide (30)Large (40)Medium (20) / 50 from Small

• AJAX Single LoadingDefaultOff

  Open projects in-page above the grid instead of navigating away.

• Show PaginationDefaultOn

  Split the projects over several pages and show the controls for moving between them.

• Pagination StyleDefaultEmpty

  How readers reach the next page of projects. Theme Options follows the site-wide setting.

  ChoicesTheme Options (empty)Page NumbersLoad More ButtonInfinite ScrollShown when Show Pagination is on

Entry Style

• Show Title BarDefaultOn

  Off: image-only cards, title reveals on hover.

• Title Inside OverlayDefaultOff

  Title and categories appear inside the hover overlay.

  Shown when Show Title Bar is on

• Alternating Split LayoutDefaultOff

  Single-column cards: image beside a wide description column, alternating direction.

• Equal Height CardsDefaultOff

  Stretch all cards in a row to the same height.

Related

Every Canvas block also carries the Animation, Scroll Effects and Advanced panels, which are described in Controls every Canvas block has.

Other blocks in Portfolio: Portfolio Categories, Portfolio Content, Portfolio Image, Portfolio Meta, Portfolio Navigation, Portfolio Related.
