Product Categories

Display WooCommerce product categories as a responsive card grid with thumbnails, names, and product counts. It is shown in the block inserter as Canvas Product Categories and registered as canvas-core/woo-product-categories.

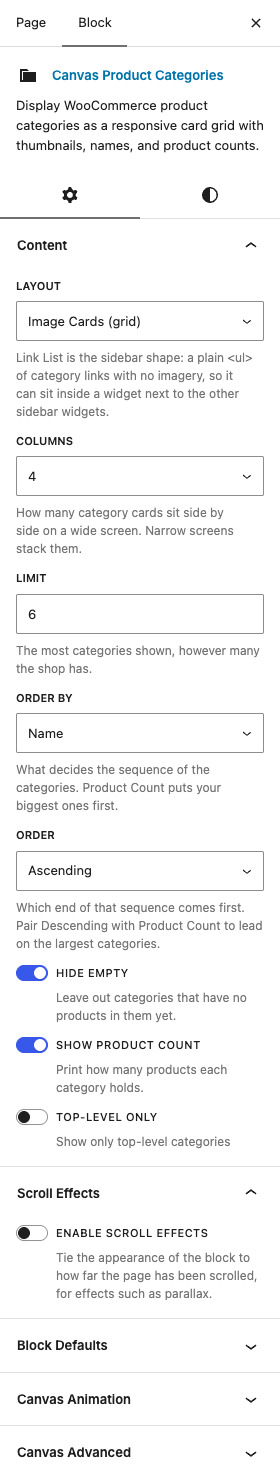

Select the block on a page and its own settings open in the sidebar, in the panels below:

Settings

Each setting is named exactly as the block editor names it, followed by what it does and what it starts as. Where a setting carries a Shown when line, it stays hidden until that condition is met, which is the usual reason a setting looks missing from the sidebar:

Content

• LayoutDefaultImage Cards (grid)

  Link List is the sidebar shape: a plain of category links with no imagery, so it can sit inside a widget next to the other sidebar widgets.

  ChoicesImage Cards (grid)Link List

• ColumnsDefault4

  How many category cards sit side by side on a wide screen. Narrow screens stack them.

  Choices23456Shown when Layout is "Image Cards (grid)"

• LimitDefault6

  The most categories shown, however many the shop has.

• Order ByDefaultName

  What decides the sequence of the categories. Product Count puts your biggest ones first.

  ChoicesNameProduct CountID

• OrderDefaultAscending

  Which end of that sequence comes first. Pair Descending with Product Count to lead on the largest categories.

  ChoicesAscendingDescending

• Hide EmptyDefaultOn

  Leave out categories that have no products in them yet.

• Show Product CountDefaultOn

  Print how many products each category holds.

• Top-level OnlyDefaultOff

  Show only top-level categories

Related

Every Canvas block also carries the Animation, Scroll Effects and Advanced panels, which are described in Controls every Canvas block has.

Other blocks in WooCommerce: Add to Cart, Cart Table, Cart Totals, Checkout Billing, Checkout Order Review, Conference Tickets.
