Canvas Docs

Thumbnails

Image thumbnail grid with hover effects and optional captions. Supports lightbox and link overlays. It is shown in the block inserter as Canvas Thumbnails and registered as canvas-core/thumbnails.

Select the block on a page and its own settings open in the sidebar, in the panels below:

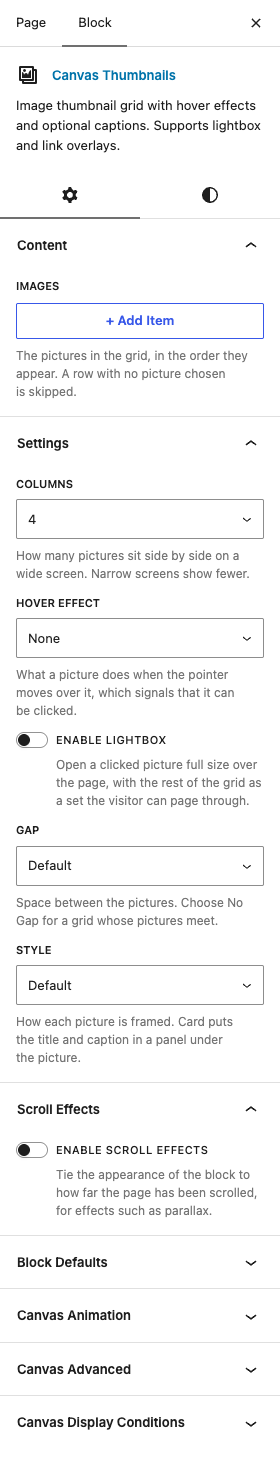

The Thumbnails settings in the block editor sidebar

Settings

Each setting is named exactly as the block editor names it, followed by what it does and what it starts as. Where a setting carries a Shown when line, it stays hidden until that condition is met, which is the usual reason a setting looks missing from the sidebar:

Content

  • ImagesDefaultEmpty

    The pictures in the grid, in the order they appear. A row with no picture chosen is skipped.

    Each row of Images takes:

    • ImageDefault0

      The picture itself. Its alternative text comes from the media library.

    • TitleDefaultEmpty

      Bold line printed under the picture. Leave empty for a picture with no caption.

    • CaptionDefaultEmpty

      Smaller line under the title, for a description or a credit.

    • Link URLDefaultEmpty

      Where clicking the picture leads. Ignored while the lightbox is on, which takes the click instead.

    • Open in New TabDefaultOff

      Open this link in a new browser tab, so the visitor keeps your page open behind it.

Settings

  • ColumnsDefault4

    How many pictures sit side by side on a wide screen. Narrow screens show fewer.

    Choices2346

  • Hover EffectDefaultEmpty

    What a picture does when the pointer moves over it, which signals that it can be clicked.

    ChoicesNone (empty)Fade OverlaySlide UpZoomGrayscale to Color

  • Enable LightboxDefaultOff

    Open a clicked picture full size over the page, with the rest of the grid as a set the visitor can page through.

  • GapDefaultDefault

    Space between the pictures. Choose No Gap for a grid whose pictures meet.

    ChoicesDefaultNo GapSmallLarge

  • StyleDefaultDefault

    How each picture is framed. Card puts the title and caption in a panel under the picture.

    ChoicesDefaultRoundedCard with Caption

Every Canvas block also carries the Animation, Scroll Effects and Advanced panels, which are described in Controls every Canvas block has.

Other blocks in Content: Background Video / Audio, Cascading Images, Charts, Circle Stack, Clients, Data Tables.
