Event Image

Displays the featured image of the current event. Only renders on canvas_event post type. It is shown in the block inserter as Event Image and registered as canvas-core/event-image.

Select the block on a page and its own settings open in the sidebar, in the panels below:

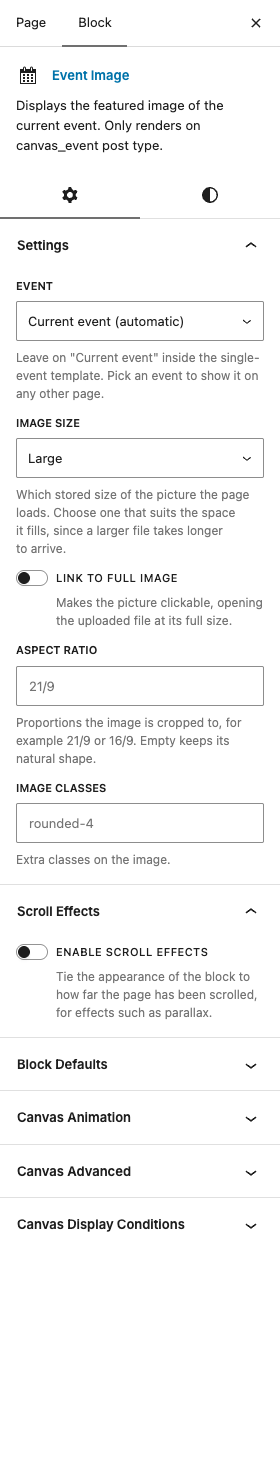

The Event Image settings in the block editor sidebar

Settings

Each setting is named exactly as the block editor names it, followed by what it does and what it starts as. Where a setting carries a Shown when line, it stays hidden until that condition is met, which is the usual reason a setting looks missing from the sidebar:

Settings

  • EventDefaultCurrent event (automatic)

    Leave on "Current event" inside the single-event template. Pick an event to show it on any other page.

    ChoicesCurrent event (automatic)Coastal Trail RunDesign Systems SummitIbiza: Full Moon Beach PartyMakers MeetupOpen Air Cinema NightPlant-Based Cooking DayProduct Leaders RoundtableRemote Teams LiveSpring Music Fest

  • Image SizeDefaultLarge

    Which stored size of the picture the page loads. Choose one that suits the space it fills, since a larger file takes longer to arrive.

    ChoicesMedium LargeLargeFull

  • Link to Full ImageDefaultOff

    Makes the picture clickable, opening the uploaded file at its full size.

  • Aspect RatioDefaultEmpty

    Proportions the image is cropped to, for example 21/9 or 16/9. Empty keeps its natural shape.

  • Image ClassesDefaultEmpty

    Extra classes on the image.

Every Canvas block also carries the Animation, Scroll Effects and Advanced panels, which are described in Controls every Canvas block has.

Other blocks in Events: Conference Programme, Event Archive Grid, Event Categories, Event Content, Event Date, Event Excerpt.
