Post Media

The entry media box of the current post: its featured image, video or audio embed, gallery slider, thumbnail grid, quotation, link or status card, chosen from the post format. It is shown in the block inserter as Post Media and registered as canvas-core/post-media.

Select the block on a page and its own settings open in the sidebar, in the panels below:

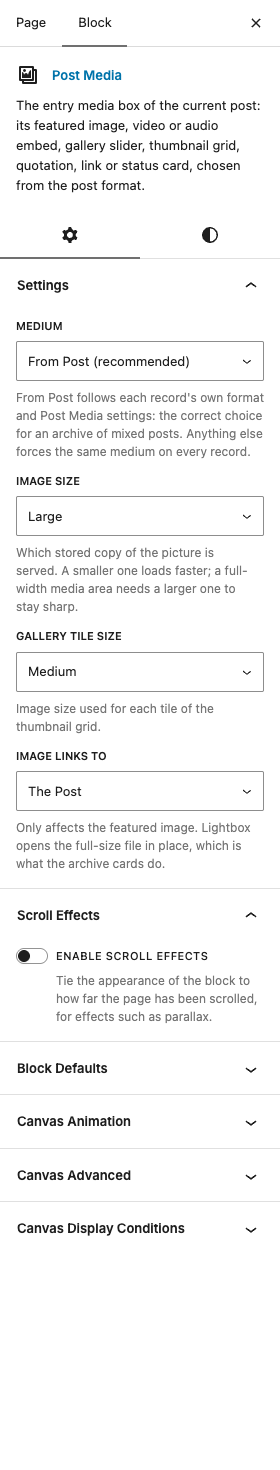

The Post Media settings in the block editor sidebar

Settings

Each setting is named exactly as the block editor names it, followed by what it does and what it starts as. Where a setting carries a Shown when line, it stays hidden until that condition is met, which is the usual reason a setting looks missing from the sidebar:

Settings

  • MediumDefaultEmpty

    From Post follows each record's own format and Post Media settings: the correct choice for an archive of mixed posts. Anything else forces the same medium on every record.

    ChoicesFrom Post (recommended) (empty)Featured ImageVideo EmbedAudio EmbedGallery - SliderGallery - Thumbnail GridQuotationLinkStatus Card

  • Image SizeDefaultLarge

    Which stored copy of the picture is served. A smaller one loads faster; a full-width media area needs a larger one to stay sharp.

    ChoicesThumbnailMediumMedium LargeLargeFull

  • Gallery Tile SizeDefaultMedium

    Image size used for each tile of the thumbnail grid.

    ChoicesThumbnailMediumMedium LargeLarge

  • Image Links ToDefaultThe Post

    Only affects the featured image. Lightbox opens the full-size file in place, which is what the archive cards do.

    ChoicesThe PostLightbox (full-size file)Nothing

Every Canvas block also carries the Animation, Scroll Effects and Advanced panels, which are described in Controls every Canvas block has.

Other blocks in Posts: Blog Archive Loop, Blog Loop, Blog Single Post, Post Archive Index, Post Author, Post Comments.
